version 0

Link to PRD

Due: 01/13/2026

Final Table: tq_dev.internal_dev_csong_sandbox.implant_rates_v0_2025_10

Goal:​

Goal for v0 is to create a table with implant carveout percentages using payer MRF data.

Scope:​

  • Data Source:
    • payer MRF (core rates)
  • Providers:
    • All Hospitals in Clear Rates
  • Payers / Networks:
    • All payers and networks in Clear Rates
    • But if network for a payer isn’t available in Clear Rates, we should still include the non-Clear Rates network
  • Codes:
    • Revenue codes:
      • 0275, 0276, 0277, 0278

Methodology:​

  1. Filter Core Rates:
    1. we can use either:
      1. core_rates: tq_production.public_YYYY_MM.core_rates
      2. a temp table in Clear Rates pipeline that is a preprocessed version of core_rates: tq_dev.internal_dev_csong_cld_v2_3_1.tmp_raw_mrf_payer_rates_2025_10
    2. payers, networks, and providers that are in scope.
      1. Filter payers using payer_id
      2. Filter providers using provider_id
      3. Filter networks using product_network_label
    3. billing_class
      1. institutional
      2. note that some payers report institutional ASC rates with billing_class = ‘professional’ (see logic here) only including Hospitals
    4. codes
      1. Filter to codes listed above in the “scope section” using biling_code
      2. billing_code = ‘RC’ for revenue codes, ‘HCPCS’ for others
    5. negotiated_type
      1. percentage
    6. negotiated_rate
      1. exclude where negotiated_rate > 100
  2. Pre-Processing
    1. negotiated_rate
      1. if negotiated_rate < 1 then negotiated_rate * 100
      2. round to the nearest 100th place
  3. Analysis
    1. For each payer, network, provider, compute the following summary statistics using the “percentage”:
      1. mode
      2. median
      3. min
      4. max
      5. average
      6. count(distinct percentages)
    2. Determine thresholds for handling multiple different rates:
      1. if source of multiple rates is within contract-revenue_code, select the max()
      2. if source of multiple rates is between revenue_codes within a contract, hierarchy to prefer 0278

SQL:

Create a table from Core Rates where each row represents a unique payer, network, provider, and revenue_code. These are candidate implant carveout rates.

tq_dev.internal_dev_csong_sandbox.implant_rates_cr_v0_{cld_subversion}

Core Rates Table Code
cld_version = "v2_3_1"
cld_subversion = "2025_10"
core_rate_month = "2025_10"

query.execute_query(f"""
CREATE OR REPLACE TABLE tq_dev.internal_dev_csong_sandbox.implant_rates_cr_v0_{cld_subversion} AS
WITH
network_spine AS (
    SELECT
        payer_id,
        network_id,
        network_name,
        t.payer_data_network
    FROM
        tq_dev.internal_dev_csong_cld_{cld_version}.tmp_ref_network_spine_{cld_subversion},
        UNNEST(payer_data_network) AS t(payer_data_network)
),
payer_spine AS (
    SELECT DISTINCT
        payer_id,
        payer_name
    FROM tq_dev.internal_dev_csong_cld_{cld_version}.tmp_ref_payer_spine_{cld_subversion}
),
provider_spine AS (
    SELECT
        provider_id
    FROM
        tq_dev.internal_dev_csong_cld_{cld_version}.tmp_ref_provider_spine_{cld_subversion}
    WHERE
        provider_id IS NOT NULL
        AND provider_type = 'Hospital'
),
core_rates AS (
    SELECT
        cr.payer_id,
        cr.payer_name,
        CASE
            WHEN ns.network_id IS NOT NULL
            THEN ns.network_id
            ELSE from_big_endian_64(xxhash64(CAST(
                cr.payer_id || cr.product_network_label AS varbinary
            )))
        END AS network_id,
        CASE
            WHEN ns.network_name IS NOT NULL
            THEN ns.network_name
            ELSE cr.product_network_label
        END AS network_name,
        CASE
            WHEN ns.network_name IS NOT NULL
            THEN True
            ELSE False
        END AS in_clear_rates,
        cr.provider_id,
        cr.billing_code,
        cr.service_code,
        cr.id,
        CASE
            WHEN negotiated_rate < 1 THEN negotiated_rate * 100
            WHEN negotiated_rate > 100 THEN NULL
            ELSE negotiated_rate
        END AS percentage
    FROM tq_production.public_{core_rate_month}.core_rates cr
    LEFT JOIN network_spine ns
        ON ns.payer_id = cr.payer_id
        AND ns.payer_data_network = cr.product_network_label
    LEFT JOIN payer_spine ps
        ON ps.payer_id = cr.payer_id
    JOIN provider_spine ps
        ON ps.provider_id = cr.provider_id
    WHERE
        cr.billing_code_type = 'RC'
        AND cr.billing_code IN (
            '0275',
            '0276',
            '0277',
            '0278'
        )
        AND cr.billing_class = 'institutional'
        AND cr.negotiated_type = 'percentage'
),
mode_rates AS (
    SELECT
        payer_id,
        network_id,
        provider_id,
        percentage,
        ROW_NUMBER() OVER (
            PARTITION BY payer_id, network_id, provider_id
            ORDER BY COUNT DESC
        ) AS rn
    FROM (
        SELECT
            payer_id,
            network_id,
            provider_id,
            percentage,
            COUNT(*) as count
        FROM core_rates
        GROUP BY 1, 2, 3, 4
    )
)
SELECT
    cr.payer_id || CAST(cr.network_id AS VARCHAR) || cr.provider_id || cr.billing_code AS unique_id,
    cr.payer_id || CAST(cr.network_id AS VARCHAR) || cr.provider_id AS contract_id,
    cr.payer_id,
    cr.payer_name,
    cr.network_id,
    cr.network_name,
    cr.in_clear_rates,
    cr.provider_id,
    cr.billing_code,
    ARRAY_SORT(ARRAY_AGG(DISTINCT cr.service_code)) AS service_codes,
    ARRAY_AGG(DISTINCT cr.id) AS core_rate_ids,
    min(cr.percentage) as min_rate,
    max(cr.percentage) as max_rate,
    avg(cr.percentage) as avg_rate,
    approx_percentile(cr.percentage, 0.5) as median_rate,
    ANY_VALUE(mr.percentage) as mode_rate,
    count(DISTINCT cr.percentage) as num_rates
FROM core_rates cr
LEFT JOIN (SELECT * FROM mode_rates WHERE rn = 1) mr
    ON mr.payer_id = cr.payer_id
    AND mr.network_id = cr.network_id
    AND mr.provider_id = cr.provider_id
GROUP BY 1, 2, 3, 4, 5, 6, 7, 8, 9
HAVING count(DISTINCT cr.percentage) >= 1
""", con=trino_conn)

Then, after identifying thresholds, apply the thresholds to generate the final implant rates table, where each row is a payer, network, and provider.

tq_dev.internal_dev_csong_sandbox.implant_rates_v0_{cld_subversion}

Implant Rates Table Code
query.execute_query(f"""
CREATE OR REPLACE TABLE tq_dev.internal_dev_csong_sandbox.implant_rates_v0_{cld_subversion} AS
WITH
df AS (
    SELECT
        unique_id,
        contract_id,
        payer_id,
        payer_name,
        network_id,
        network_name,
        in_clear_rates,
        provider_id,
        billing_code,
        CAST(NULL AS VARCHAR) as setting,
        max_rate as implant_percentage,
        ROW_NUMBER() OVER (
            PARTITION BY contract_id
            ORDER BY
                -- Prefer 0278 over others
                CASE
                    WHEN billing_code = '0278' THEN 1
                    ELSE 2
                END
            ASC
        ) AS rn
    FROM tq_dev.internal_dev_csong_sandbox.implant_rates_cr_v0_{cld_subversion}
)
SELECT
    unique_id,
    contract_id,
    payer_id,
    payer_name,
    network_id,
    network_name,
    in_clear_rates,
    provider_id,
    billing_code,
    setting,
    implant_percentage
FROM df
WHERE rn = 1
""", con=trino_conn)

Analysis​

conclusion
  1. A contract-revenue_code pair has multiple different rates less than 5% of the time. We'll prefer the max rate.
  2. A contract has multiple implant rev codes with different rates about 5% of the time. We'll prefer the 0278 rate.

Q1: How often does a contract-revenue_code pair have multiple different rates?​

There are 191324 payer, network, provider, revenue code (274-278) combinations. 95% of the time, this contract-revenue_code pair has ≤\leq 2 distinct percentages.

num_rates
count191324
mean1.1824
std0.64793
min0
25%1
50%1
75%1
90%2
95%2
99%4
max16
Code
# distribution
df = pd.read_sql(f"""
SELECT
   COUNT(*) AS num_objects,
   COUNT(DISTINCT contract_id) AS num_contracts,
   COUNT(DISTINCT billing_code) AS num_rates,
   APPROX_PERCENTILE(num_rates, 0.25) AS p25,
   APPROX_PERCENTILE(num_rates, 0.5) AS p50,
   APPROX_PERCENTILE(num_rates, 0.75) AS p75,
   APPROX_PERCENTILE(num_rates, 0.9) AS p90,
   APPROX_PERCENTILE(num_rates, 0.95) AS p95,
   APPROX_PERCENTILE(num_rates, 0.99) AS p99,
   MAX(num_rates) AS max_rates
FROM tq_dev.internal_dev_csong_sandbox.implant_rates_cr_v0_{cld_subversion}
""", con=trino_conn)
df.T

Evaluate Samples with Multiple Rates:

Code
df = pd.read_sql(f"""
WITH
samples AS (
    SELECT
        payer_id,
        network_name,
        provider_id,
        billing_code,
        core_rate_ids
    FROM
        tq_dev.internal_dev_csong_sandbox.implant_rates_cr_v0_{cld_subversion}
    WHERE num_rates > 1
    ORDER BY RANDOM()
    LIMIT 10
),
expanded AS (
    SELECT
        payer_id,
        network_name,
        provider_id,
        billing_code,
        core_rate_id
    FROM samples,
        UNNEST(core_rate_ids) AS t(core_rate_id)
)
SELECT
    cr.*
FROM tq_production.public_2025_10.core_rates cr
JOIN expanded e
    ON cr.payer_id = e.payer_id
    AND cr.id = e.core_rate_id
""", con=trino_conn)
df

# %%
df_sample = df[[
    'payer_id',
    'product_network_label',
    'provider_id',
    'provider_npi',
    'provider_group_id',
    'ein_name',
    'billing_code',
    'billing_class',
    'service_code',
    'negotiated_rate'
]].sort_values([
    'payer_id',
    'product_network_label',
    'provider_id',
    'billing_code',
    'negotiated_rate'
])
print(df_sample.to_markdown(index=False))

One explanation for the within-contract-revenue_code percentage variability in these examples is that EINs with different rates are getting mapped to the same provider_id. A known "issue" with provider ID mapping.

Another appears to be payer simply reporting multiple rates.

Data Examples
payer_idproduct_network_labelprovider_idprovider_npiprovider_group_idein_namebilling_codebilling_classnegotiated_rate
522KFHP NORTHERN CALIFORNIA65571639143381941397461Sierra View Medical Center0275institutional70
522KFHP NORTHERN CALIFORNIA65571982827358680317191County Of Sacramento0275institutional100
522KFHP NORTHERN CALIFORNIA65571073736443680317191County Of Sacramento0275institutional100
522KFHP SOUTHERN CALIFORNIA65571639143381680317191County Of Sacramento0275institutional100
522KFHP SOUTHERN CALIFORNIA65571639143381941397461Sierra View Medical Center0275institutional100
522KFHP SOUTHERN CALIFORNIA65571639143381680317191County Of Sacramento0275institutional100
522KPIC NORTHERN CALIFORNIA65571639143381941397461Sierra View Medical Center0275institutional70
522KPIC NORTHERN CALIFORNIA65571073736443680317191County Of Sacramento0275institutional100
522KPIC NORTHERN CALIFORNIA65571982827358680317191County Of Sacramento0275institutional100
522KPIC SOUTHERN CALIFORNIA65571639143381680317191County Of Sacramento0275institutional100
522KPIC SOUTHERN CALIFORNIA65571639143381941397461Sierra View Medical Center0275institutional100
522KPIC SOUTHERN CALIFORNIA65571639143381680317191County Of Sacramento0275institutional100
624MT NAVIGATOR HSA55591003939190475437700Billings Clinic Health System0278institutional55
624MT NAVIGATOR HSA55591003939190475437700Billings Clinic Health System0278institutional60
624MT NAVIGATOR HSA55591003939190475437700Billings Clinic Health System0278institutional80
7MD GROUP EPO14121992701825520445374Civista Medical Center0278institutional97.75
7MD GROUP EPO14121992701825520445374Civista Medical Center0278institutional98
7NATIONAL PPO15901144228305550357045WVU Medicine0278institutional71
7NATIONAL PPO15901144228305550357045WVU Medicine0278institutional94
7NATIONAL PPO17041275681264560529945Atrium Health0278institutional59.1
7NATIONAL PPO17041437554037560529945Atrium Health0278institutional59.1
7NATIONAL PPO17041619372216560529945Atrium Health0278institutional59.1
7NATIONAL PPO17041558765529560529945Atrium Health0278institutional59.1
7NATIONAL PPO17041790875953560529945Atrium Health0278institutional59.1
7NATIONAL PPO17041093708711560529945Atrium Health0278institutional59.1
7NATIONAL PPO17041558765529560529945Atrium Health0278institutional75
7NATIONAL PPO17041437554037560529945Atrium Health0278institutional75
7NATIONAL PPO17041275681264560529945Atrium Health0278institutional75
7NATIONAL PPO17041093708711560529945Atrium Health0278institutional75
7NATIONAL PPO17041619372216560529945Atrium Health0278institutional75
7NATIONAL PPO17041790875953560529945Atrium Health0278institutional75
7NC GROUP POS16661497708838560554230Novant Health0278institutional49.5
7NC GROUP POS16661417360736560554230Novant Health0278institutional49.5
7NC GROUP POS16661881647204560554230Novant Health0278institutional49.5
7NC GROUP POS16661881647204560554230Novant Health0278institutional79
7NC GROUP POS16661417360736560554230Novant Health0278institutional79
7NC GROUP POS16661497708838560554230Novant Health0278institutional79
76CARELINK NATIONAL OAP53681952723967464389870Houston Methodist0278institutional50
76CARELINK NATIONAL OAP53681952723967464389870Houston Methodist0278institutional53
76LOCALPLUS SAR71581104982917132997301Mount Sinai Health System0276institutional44.13
76LOCALPLUS SAR71581104982917132997301Mount Sinai Health System0276institutional53.16
76PRIORITY HEALTH ALLIANCE53481700801909954537720The Hospitals of Providence0275institutional21.9
76PRIORITY HEALTH ALLIANCE53481700801909954537720The Hospitals of Providence0275institutional22.8
861CHOICE POS II12871568526135250965429University of Pittsburgh Medical Center0278institutional38
861CHOICE POS II12871639143084250965429University of Pittsburgh Medical Center0278institutional38
861CHOICE POS II12871225004047250965429University of Pittsburgh Medical Center0278institutional38
861CHOICE POS II12871881695146250965429University of Pittsburgh Medical Center0278institutional38
861CHOICE POS II12871225004047250965429University of Pittsburgh Medical Center0278institutional40
861CHOICE POS II12871568526135250965429University of Pittsburgh Medical Center0278institutional40
861CHOICE POS II12871881695146250965429University of Pittsburgh Medical Center0278institutional40
861CHOICE POS II12871639143084250965429University of Pittsburgh Medical Center0278institutional40

Q2: How often do contracts contain multiple implant rev codes with different rates?​

There is a difference 5% of the time. We'll prefer the 0278 rate.

Code
df = pd.read_sql(f"""
WITH
df AS (
    SELECT
        contract_id,
        min(avg_rate) AS min_rate,
        max(avg_rate) AS max_rate,
        max(avg_rate) - min(avg_rate) AS rate_diff
    FROM tq_dev.internal_dev_csong_sandbox.implant_rates_cr_v0_{cld_subversion}
    GROUP BY 1
)
SELECT
    CASE
        WHEN rate_diff = 0 THEN 'no_diff'
        WHEN rate_diff > 0 AND rate_diff <= 10 THEN '0-10'
        WHEN rate_diff > 10 AND rate_diff <= 25 THEN '10-25'
        WHEN rate_diff > 25 AND rate_diff <= 50 THEN '25-50'
        WHEN rate_diff > 50 THEN '50+'
        ELSE 'unknown'
    END AS diff_bucket,
    COUNT(*) AS num_contracts
FROM df
GROUP BY 1
ORDER BY
    CASE
        WHEN diff_bucket = 'no_diff' THEN 1
        WHEN diff_bucket = '0-10' THEN 2
        WHEN diff_bucket = '10-25' THEN 3
        WHEN diff_bucket = '25-50' THEN 4
        WHEN diff_bucket = '50+' THEN 5
        ELSE 6
    END
""", con=trino_conn)
df['pct_contracts'] = 100 * df['num_contracts'] / df['num_contracts'].sum()
print(df.to_markdown(index=False))
diff_bucketnum_contractspct_contracts
no_diff6418994.1353
0-1024333.56808
10-2511471.68211
25-501720.252244
50+110.0161319
unknown2360.346102

Q3: What is the distribution of percentages?​

using tq_dev.internal_dev_csong_sandbox.implant_rates_v0_{cld_subversion} now

df = pd.read_sql(f"""
SELECT contract_id, avg(implant_percentage) as implant_percentage
FROM tq_dev.internal_dev_csong_sandbox.implant_rates_v0_{cld_subversion}
GROUP BY 1
""", con=trino_conn)

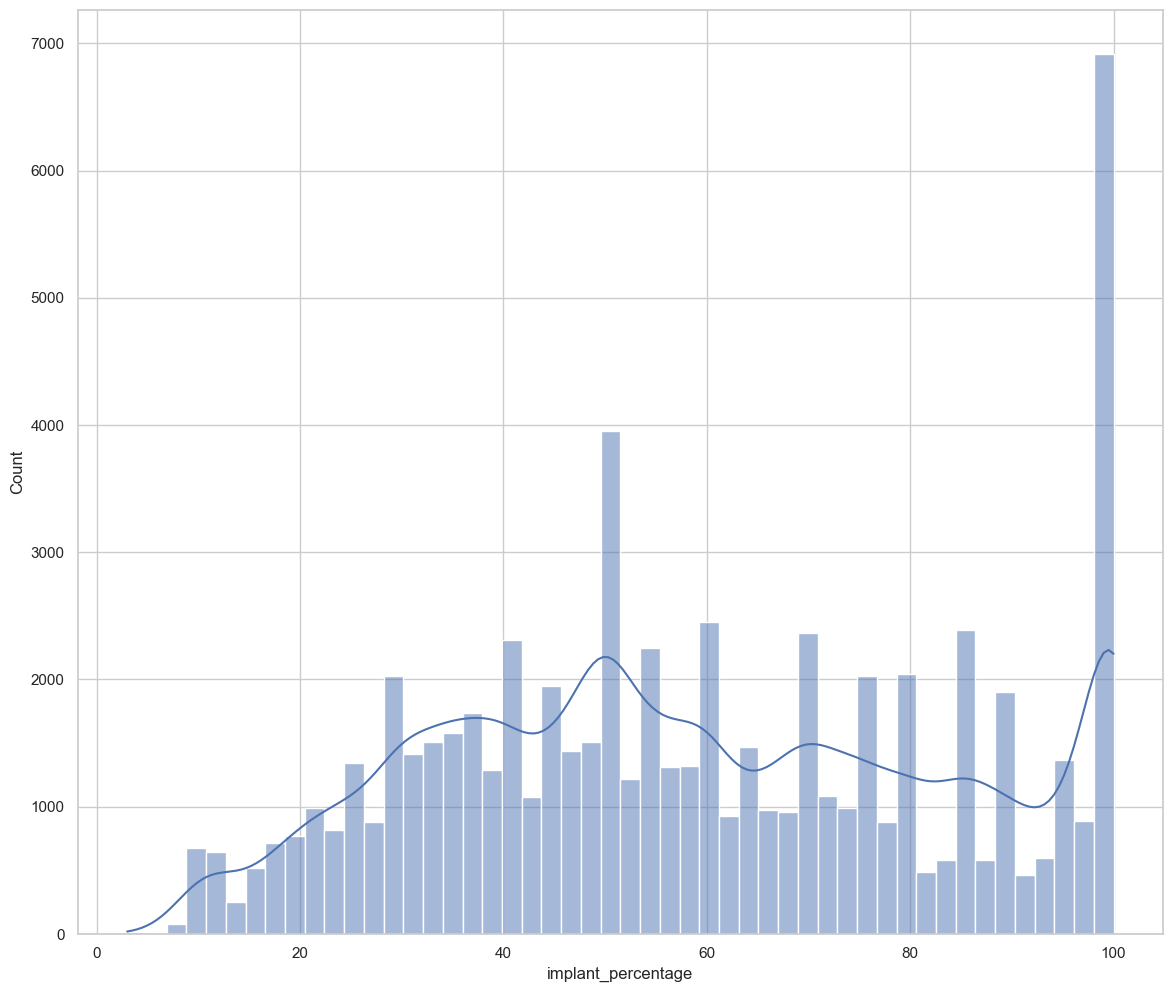

sns.histplot(data=df, x="implant_percentage", bins=50, kde=True)

alt text

# summary table with buckets
df = pd.read_sql(f"""
WITH buckets AS (
    SELECT
        CASE
            WHEN implant_percentage < 25 THEN '<25%'
            WHEN implant_percentage >= 25 AND implant_percentage < 50 THEN '25-50%'
            WHEN implant_percentage >= 50 AND implant_percentage < 75 THEN '50-75%'
            WHEN implant_percentage >=75 AND implant_percentage < 100 THEN '75-100%'
            WHEN implant_percentage >= 100 THEN '100%'
            ELSE NULL
        END AS rate_bucket,
        COUNT(DISTINCT contract_id) AS num_contracts
    FROM tq_dev.internal_dev_csong_sandbox.implant_rates_v0_{cld_subversion}
    GROUP BY 1
)
SELECT
    rate_bucket,
    num_contracts,
    ROUND(100.0 * num_contracts / SUM(num_contracts) OVER (), 2) AS pct_contracts
FROM buckets
ORDER BY
    CASE
        WHEN rate_bucket = '<25%' THEN 1
        WHEN rate_bucket = '25-50%' THEN 2
        WHEN rate_bucket = '50-75%' THEN 3
        WHEN rate_bucket = '75-100%' THEN 4
        WHEN rate_bucket = '100%' THEN 5
        ELSE 6
    END
""", con=trino_conn)
print(df.to_markdown(index=False))
rate_bucketnum_contractspct_contracts
<25%57838.48
25-50%2002629.37
50-75%2104230.86
75-100%1428820.95
100%68139.99
2360.35
On this page:
